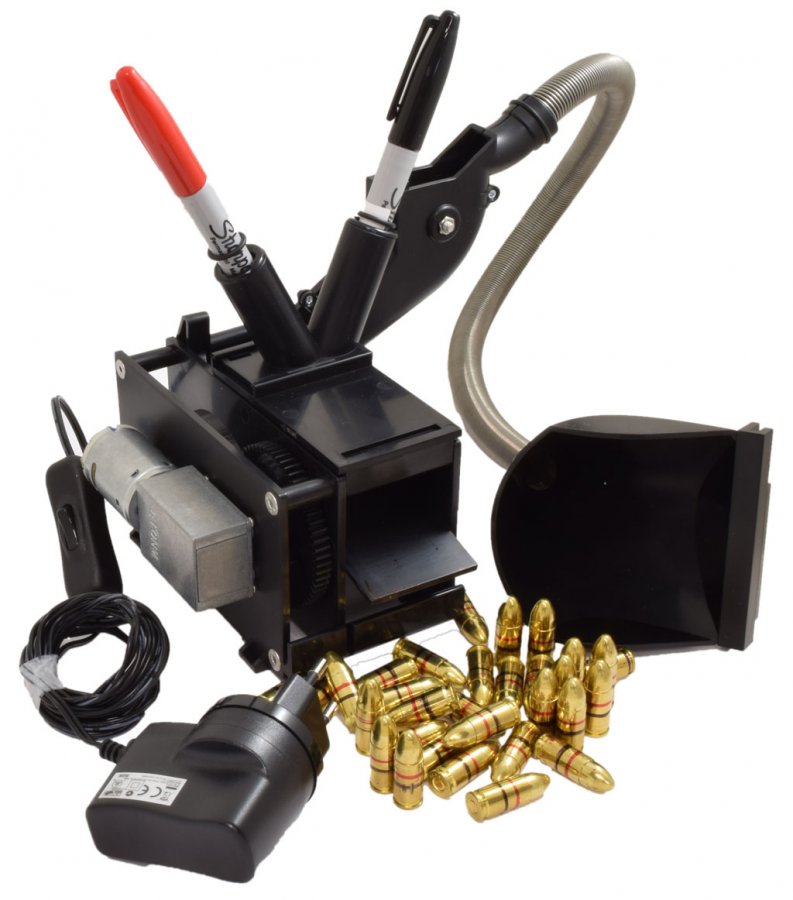

DAA Automatic Brass / Ammunition Marking Machine by Double Alpha

The DAA Automatic Brass Marker offers a unique and innovative solution for shooters wanting to easily recover their fired brass on the range. It will stripe your loaded ammo with one or two lines around the full circumference of the case, while you are reloading your ammo, affectively costing you no time at all!

Once fired, the spent brass is easy to spot and collect from the range floor, thanks to the stripes which are visible at a glance, no matter how the case rests.

As the bullets drop out of your reloading press, they are directed through the Output Chute (included) and down the 40cm long spring into the DAA Automatic Brass Marker. First, the rounds are oriented through the entry funnel, which flips upside-down bullets so that all land on the ramp with their bullet first. This ensures the stripes are consistently made on the same position on all the ammo. Especially useful if your goal is to adjust to mark a line inside the extraction groove – which is possible to do!

Please note: Perfect performance of the entry funnel ammo orientation is only possible when the unit is carefully position to allow the bullets to slide and enter at the correct speed. Experimentation is needed to fine tune for each type of round.

The DAA Automatic Brass Marker is multi caliber and can be used with all pistol rounds from 9mm and all the way up to .44mag. Note that .50AE can be used too, but must be fed manually onto the ramp as it will not fit through the entry funnel opening. No additional parts are needed to switch between calibers, but some adjustments are done on the machine for longer bullets. Watch video tutorial for more info.

The ammo is automatically feed through the mechanism, where a rubberized drum spins the round quickly and completes several full rotation beneath the awaiting marker points, to ensure a clean and complete line around the full circumference of the case.

The DAA Automatic Brass Marker ships including two Sharpie markers (black and red), but other types and colors may be used as well. Any permanent marker with a diameter of up to 15mm can be used, although some will work better than others. We recommend using the Sharpie’s or the Edding3000 for best results (Edding300 will not fit!)

The DAA Automatic Brass Marker is driven by a small 6v DC motor which is powered by a dual voltage 110/220v power supply, also included.

Unpack your Marker, and within 10 minutes you can be up and running, and never have to spend your valuable time marking your brass ever again!

Be sure to watch the tutorial video provided for easy and trouble free setup.
