Micrometer Kits are Back in Stock! Preinstalled in Powder Bars Available Soon! The UniqueTek Micrometer Powder Bar Kit™ upgrades your existing powder bar to a micrometer powder bar. No more guessing how many turns of the adjustment screw will get you back to that perfect powder weight.

Features

• Precision 40tpi Micrometer Head

• Durable All Steel Construction.

• Fits All Powder Bar Sizes

• Also fits SL 900 Powder Bar and Shot Bars! *

* Minor modification required.

Much more than just a dial or knob … the Micrometer Powder Bar Kit™ replaces the original 1/4-28 adjustment bolt with a true precision micrometer with 40 threads per inch. You will be able to return instantly to any powder weight setting with a speed and an accuracy never before possible. Of course, you still must weigh and confirm all powder weight setting changes.

Kit Includes: †

– Micrometer head

– Loctite®

– Installation instructions.

 † Powder bar not included in kit.

Kit Cost = $79.95

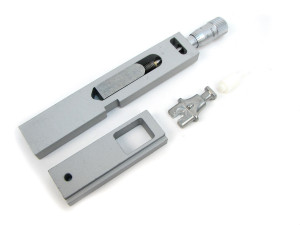

Micrometer Preinstalled in New Powder Bar:

The Micrometer Powder Bar Kit™ is also available preinstalled in a new powder bar. Just select the one you need from the drop-down menu when ordering.

– Preinstalled in Small Powder Bar for 550/1050/1100 Press - (T1231-5S)

– Preinstalled in Large Powder Bar for 550/1050/1100 Press - (T1231-5L)

– Preinstalled in Small Powder Bar for 650/750/SDB Press - (T1231-6S)

– Preinstalled in Large Powder Bar for 650/750/SDB Press - (T1231-6L)

Cost = $129.95 ^

^ Same price for all 4 options.

FREE Calibration Curve Spread Sheet

We provide a FREE Excel spread sheet you can use to generate "calibration curves" for each of your gunpowders. With a "calibration curve," you can predict the micrometer setting to give you any desired charge weight for that gunpowder.*

* You still must weigh and confirm all powder weight setting changes even when using a calibration curve that you have generated yourself. To download a copy of the Calibration Curve spread sheet template for Microsoft Excel (.xltx format), Click Here.

Q&A

Q : Will this spreadsheet work with rotary drum powder measures (e.g. Redding, RCBS, Hornady, Harrell's, Lee) that have micrometer adjusters?

A : Absolutely! But, as always, you'll need to generate a new curve using your powder measure and gunpowder of choice.

Try our new Micrometer Setting Calculator Web App.

It works on both Android and iOS devices and is Free to use!

To use the Web App, Click Here.

Note: If you "Add to Home Screen", you can access it with a single tap!

Read reviews of the Micrometer Powder Bar Kit™ in the following magazines!

Shooting Sports Retailer , "Gear Roundup" by Gordy Krahn, Volume 40, Issue 3, March 2022, Page 43. Click Here to Read

IHMSA News , Volume 19, Issue 5, June 2008, Page 8. Precision Shooting ; May 2006, Page 28.

Handloader ; August-September 2005, Page 105. Click Here to Read

Front Sight ; July/August 2005, Page 15. Click Here to Read Read Precision Powder Baffle™

Don't forget to check our our Precision Powder Baffle™.

It greatly minimizes variations in powder drop weight versus powder hopper fill level and makes a great companion to the Micrometer Powder Bar Kit™.

Micrometer Powder Bar Kit and Precision Powder Baffle are a trademarks of UniqueTek, Inc.

Loctite is a registered trademark of the Henkel Corporation.

Disclaimer: Dillon Precision does not authorize the Micrometer Powder Bar Kit™ for use on any of its reloading presses and its use may void manufacturer or dealer warranties.

Download Installation Instructions, Click Here.
