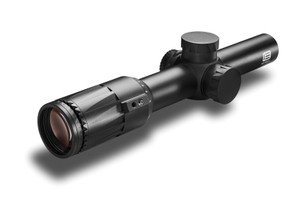

EOTech Vudu 1-8x24 SFP Riflescope - HC3 Reticle (MOA) VDU1-8SFHC3
Like other Vudu scopes, the 1–8X24 SFP features aircraftgrade aluminum construction and bright XC High-Density glass, surgically precise turrets, and intuitive push-button reticle illumination controls. The HC3 quad-level BDC reticle features a precise 0.5-MOA illuminated center dot and 2-, 5-, 8.5- and 12.5-MOA subtensions on the vertical axis (at 8X power). The scope’s field of view at 100 yards is 105.8 feet at 1X and 13.2 feet at 8X..
Features
Aircraft Grade
Aircraft-grade aluminum, single-piece construction with anodized finish for extreme durability. Laser-etched adjustment indicators and push-button illumination controls for tracking east. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.
Fog Resistant
Nitrogen gas purging prevents internal fogging over the operating temperature range.
Shock Resistant
The rugged design prevents damage from heavy recoil and rough handling.
Water Resistant
The single-piece tube and o-ring seals prevents moisture and dust from entering the scope even in the harshest environments.
Anti-Reflective Lenses
XC™ high-density, low dispersion glass with anti reflective coated lenses provides efficient light transmission and unmatched edge-to-edge clarity. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.
Technical Specifications
Included in the box:
Operator Manual
Reticle Manual
Throw Lever
Lens Cleaning Cloth
Battery
Operator Manuals:
HC3 Reticle Manual
Second Focal Plane

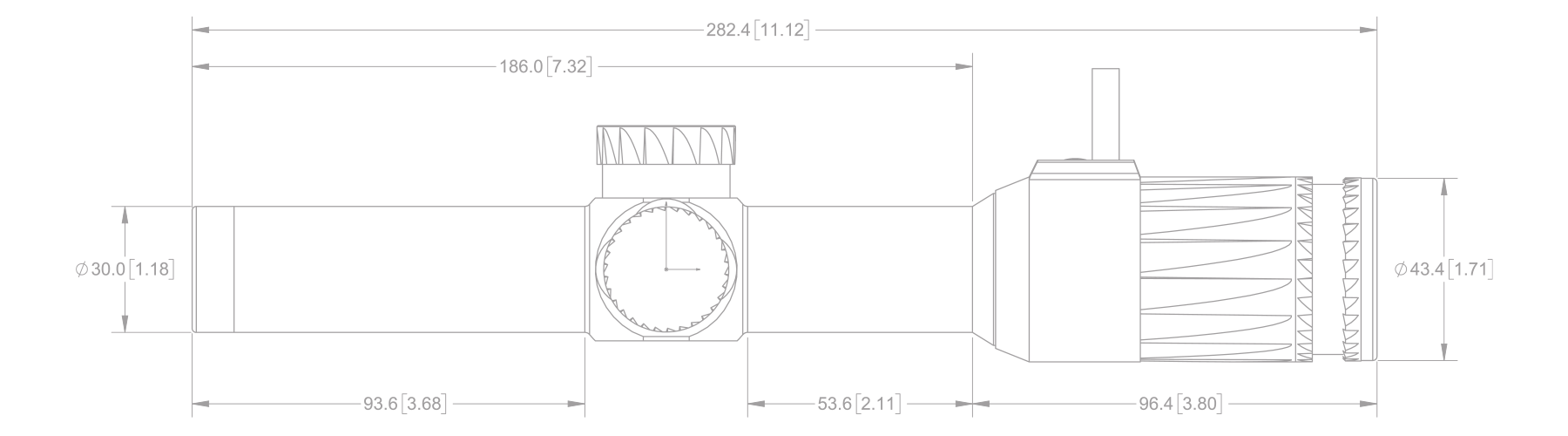

Overall Length
10.9" (278 mm)
Weight
20.8 oz (589.7 g)
Magnification
1-8X
Tube Diameter
30 mm
Objective Diameter
24 mm
Power Source
CR2032
Eye Relief
1X: 3.46-4.09" (88-104 mm)
8X: 3.54-3.9" (90-99 mm)
Field-of-View @ 100 Yards
1X: 105.8 ft (32.2 m)
8X: 13.2 ft (4 m)
Country of Origin
Made in Japan
Reticle Specifications

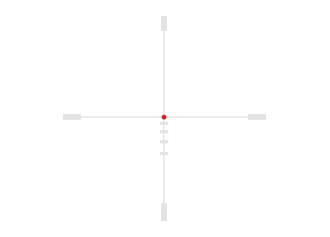

Vudu HC3 Reticle
The HC3 is a second focal plane MOA-based hashmark reticle that was designed specifically for the 3-gun competition shooter. The quadplex BDC reticle features a precise 0.5 MOA daylight-visible illuminated center dot and four sub-tension hash marks providing precise ballistic holdovers for those longer shots. The HC3 reticle is also an excellent choice for shooters interested in a short to mid-range low power variable hunting optic.
Adjustment Graduation Per Click
0.25 MOA
Adjustment Graduation Per Rotation
20 MOA
Total Elevation Travel
100 MOA
Total Windage Travel
80 MOA
