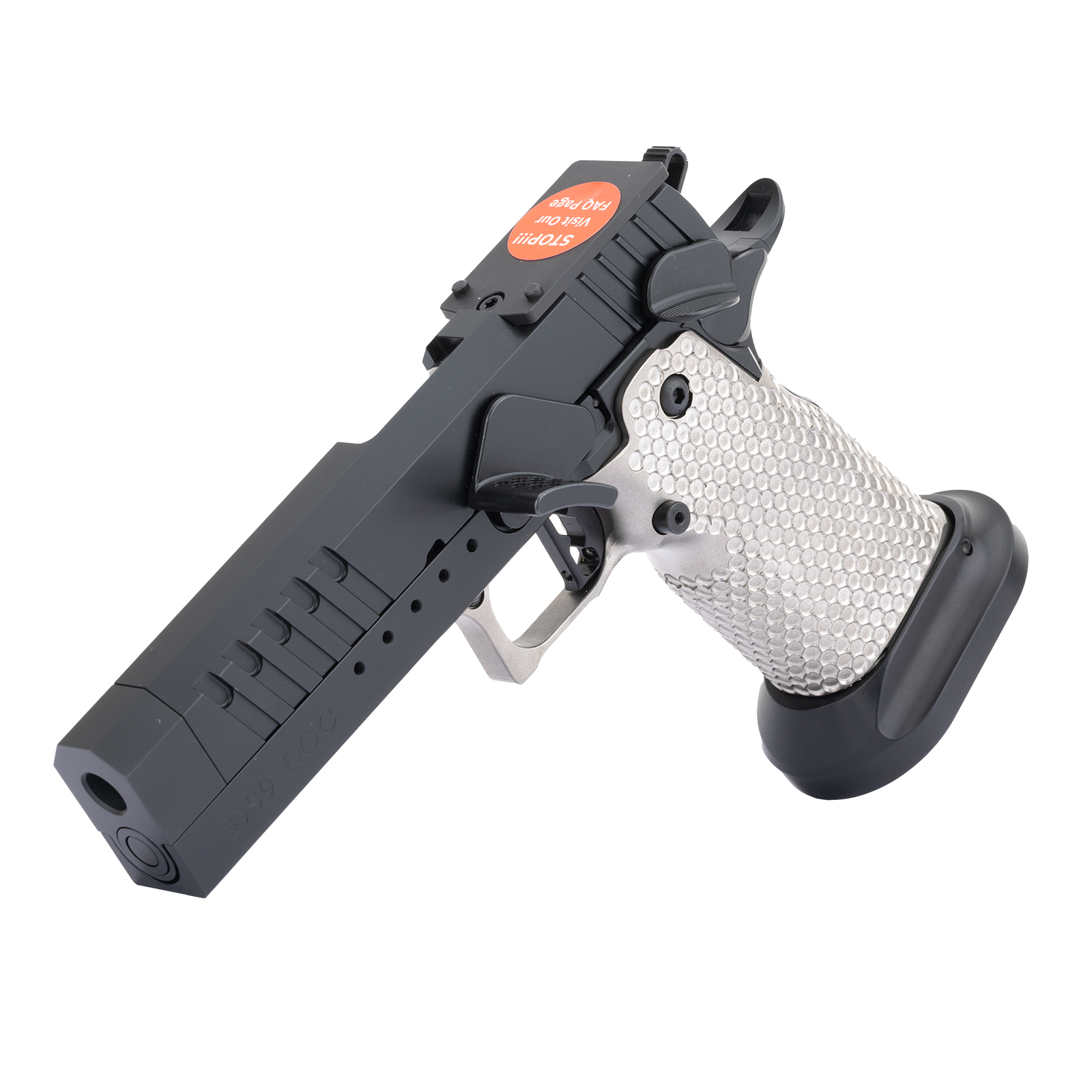

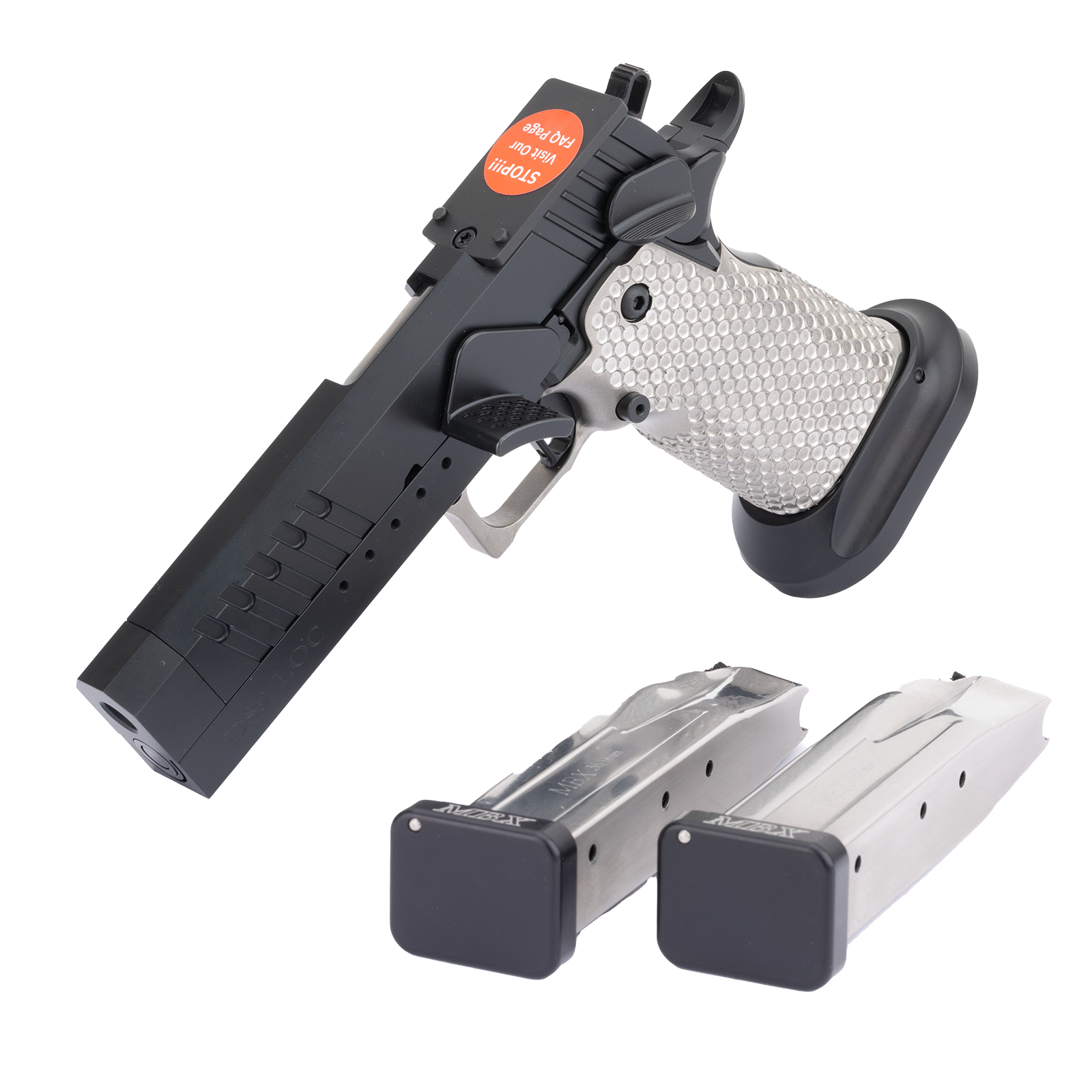

MPA DS9 Limited Optics Comp – V2 (LOC-V2)
This pistol configuration is designed specifically for USPSA Limited Optics Division.
On May 1st 2023, the USPSA began the Limited Optic Provisional Division. At MPA, we have created the ideal pistol configuration for Top Level Performance for shooters who want to win. That was the “OG” (Original Gun) our LOC – Limited Optics Competition Pistol. Since then, we have done some extensive testing in making that model even faster, and flatter. With that we are proud to introduce the newest edition to the MPA lineup, the LOC-V2!
Our DS Series Pistols are hand built, hand lapped, tuned and ready to perform. Whether your application is shooting 3 Gun, USPSA Comps, Law Enforcement or simply a Shooting Enthusiast, the DS Series Pistols are an outstanding option for these and other applications.
After the pistols are hand built, they go through a rigorous testing and inspection system to ensure only the highest quality products are getting to our customers.
The DS Pistols are designed to shoot flat and fast, making successful target engagement easy for all levels of shooters.
The basis of this DS Pistol is our Hybrid, but with these specific enhancements:
- Stainless Steel Sight Block & Shortened Slide for less muzzle rise – incredibly flat shooting
- All LOC V2 Pistols will have a frame Machined with Thumb Rest Mounting holes. This gives the shooter multiple options for Thumb Support (Slide Stop, Slide Stop Thumb Rest, Frame Mounted Thumb Rest)
- Stainless Steel Aggressive Grip – with Internal Mag Alignment Technology

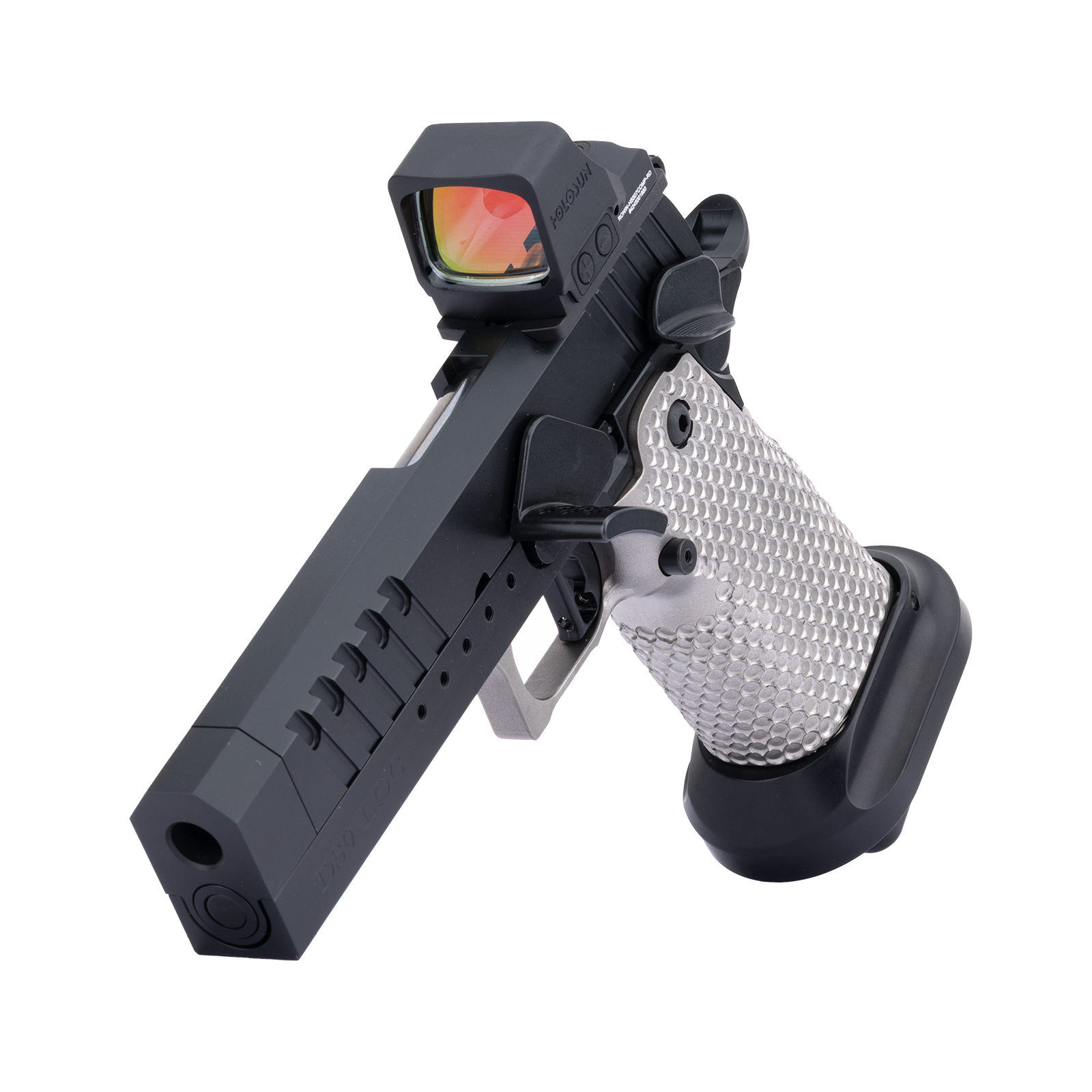

- Optics Plate (your choice of a multitude of Optic Modules for most of the optics used by competitive shooters)
- Competition Magwell
- 2.0 lbs. Trigger Pull (Other pull weights available)
- Shielded Ambi Safety
- Machined Stainless Steel Trigger Bow
Features
Specific Features for the DS9 Limited Optics Comp:
- Caliber: 9MM
- Barrel attached Sight Block, Machined from 416SS with a shortened slide provides an incredibly flat shooting design
- Custom Tuned Trigger 2.0 lbs (other pull weights available)
- Stainless Steel Aggressive texturing on the MPA grip
- Mag Alignment Technology in Grip Funnel
- Competition Magwell

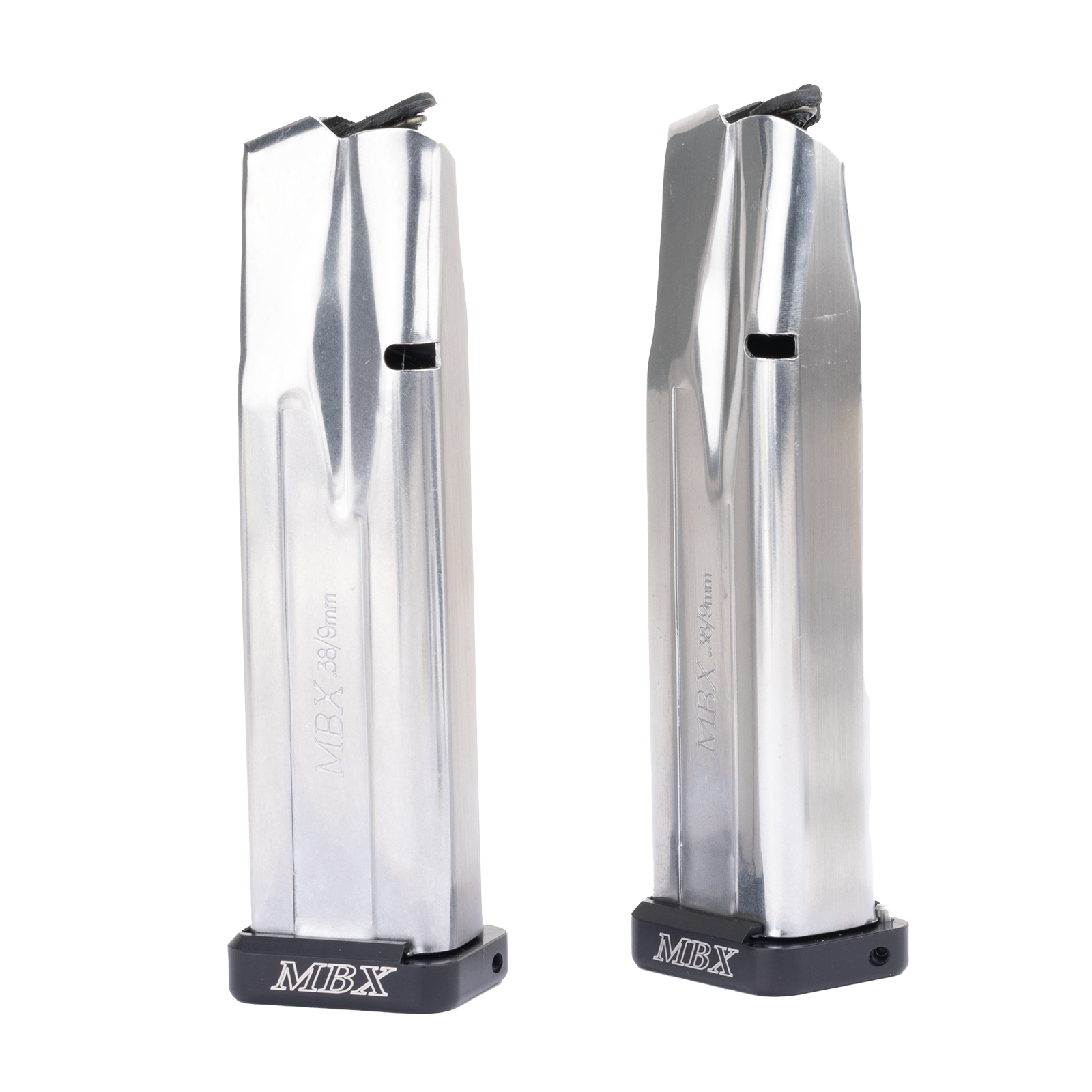

- (2) MBX 141mm 9mm magazines
- Ideal for USPSA Limited Optics Division
Standard Features:
- Hand Lapped Frame to Slide Fit
- Hand Fitted Barrel with Barrel Block
- Hand Fitted Hammer/Sear
- Full Length Dust Cover Frame and Slide Machined from Billet – no Forgings (no light rail).
- Frame Drilled and Tapped (5X 5-40 bolts) for ease of adding a Frame Mounted Thumb Rest, and Adjustable to Each Shooter.
- All parts machined from Barstock and Billet. No MIM, Castings, or Forgings
- All Parts machined in USA. Here are the components machined by MPA: Frame, Slide, Barrel, BeaverTail, Ambi-Safety, Slide Stop, Firing Pin Stop, Ejector, Magwell, Stainless Grip, Sear, Hammer, Disconnector, Guide Rod, Reverse Plug
- Incredible Accuracy and Reliability
- Competition Ready
- Lifetime Warranty
Specifications:
- Design: 9mm Wide Body, Double Stack 1911
- Frame: Steel 5″ with Full Length Dust Cover (no light rail)
- Grip: MPA Machined Stainless Steel Grip Aggressive Grip Texture
- Hammer: MPA Hammer, Sear, and Disconnector
- Trigger Shoe: MPA Machined (Short, Medium, Long Versions Available)
- Trigger Pull: 2.0 lbs
- Springs: ISMI 8lb recoil & 17lb mainspring, EGW sear spring
- Magwell: MPA Competition Magwell
- Slide: Steel 4.25″
- Barrel: Hand fitted 4.6″ Threaded MPA 416R Vacuum Heat Treated Stainless Bull Barrel.
- Barrel Block: Machined Stainless Steel
- Guide Rod: 1 Piece Stainless
- (2) MBX Extreme Magazines: 141mm
- Type of Pistol: Magazine Fed Semi-Auto
- Ammunition: 9mm Minor
- Safety: Shielded Ambi-Thumb Safety
- Finish: Black Nitride
- Overall Length: 8.9”
- Height of gun: 7.3”
- Weight: 3.18 lbs (51 OZ)
