Forward Controls Design

Sig Sauer P365 Macro Optic Adapter Plate for Trijicon RMRcc (no rear sight dovetail) by Forward Controls Design

$80.35
No reviews yet Write a Review
SKU:
OPF-P365 Macro, RMRcc
Shipping:
Calculated at Checkout

Frequently Bought Together

Please choose options for all selected products

Sig Sauer P365 Macro Optic Adapter Plate for Trijicon RMRcc (no rear sight dovetail) by Forward Controls Design

NOTE:
OPF-P365 Macro, RMRcc will NOT work with an RMR.

OPF-P365 Macro RMRcc is NOT compatible with SIG-LOC.  SIG has 3 different P365 footprints, SIG-LOC is the latest (till they come out with a new one again.

OPF-P365 Macro, RMRcc will ship with both M3 0.5 x 8mm plate-to-slide screws. Recent samples had shown some P365s have shorter screw holes than previous versions.  Original used 12mm, 2024 guns may used 12 or 10mm, 2025 may used 10mm or 8mm.  Would be nice if SIG could stop changing depths every other Friday :\

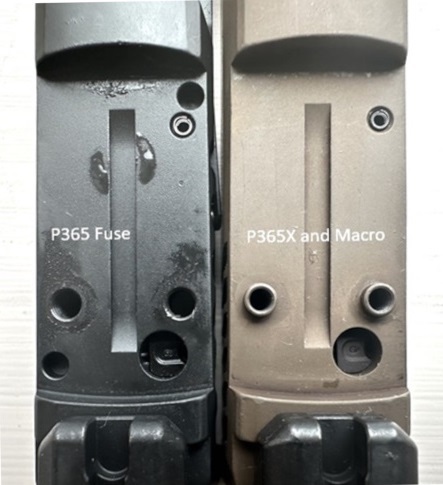

NOTE: OPF-P365 Macro, RMRcc is compatible with P365 Macro, or the new (October, 2022) version of P365X that has the rear sight in its own dovetail, as shown below:



Note: It is NOT compatible with the SIG P365 Fuse, which later became SIG-LOC footprint, and the new P365X that uses yet another (3rd variation for P365) footprint, aka SIG-LOC that doesn't have the M3 threaded posts, but uses M4 tapped screw holes.  Please remove your cover plate and check the footprint.  The new SIG footprint of the month uses M4 screws, the pocket just has the screw holes, whereas the previous versions use M3 screws, and have threaded posts.



OPF-P320 Macro, RMRcc can be used on older P365X where the optics plate and rear sight are integrated:  Installing the P365X Macro RMRcc plate will not allow the installation of a rear sight.

Given's SIG's penchant for changing things with abandon and no apparent reasons, here's one thing to look out for on your slide.



Please remove the slide's optics cut cover plate, and ensure the slot is present.  OPF-P365X, RMRcc has an oval shaped indexer that mates with the slot on the slide, but some P365X slides do not have this feature.

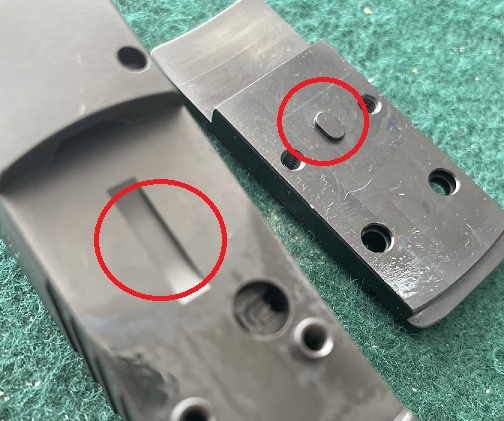

Your slide must have the slot in the center as shown below:

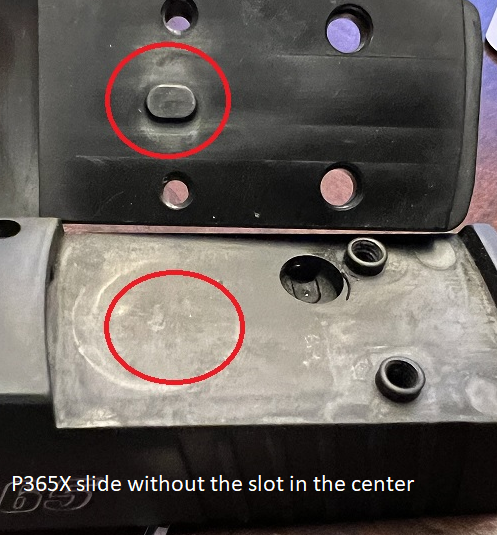

If the slide does not have the center slot as shown below, OPF-P365X, RMRcc will need to have the oval shaped indexer removed in order to fully seat in the pocket.





OPF-P365 Macro, RMRcc is designed and made for SIG Sauer P365 Macro, and P365X where the rear sight is in its own dovetail on the slide, and Trijicon's RMRcc.



Machined in 4140 steel, and black oxide coated.  We don't black nitride OPF-P365 Macro, RMRcc due to the thin plate extension over the slide, nitride would make it brittle.



Due to the design confines of the P365X, OPF-P365 Macro, RMRcc has to be made rather tall, as it not only has to bring a flat mounting surface for the RMRcc, it also has to have adequate thickness for a rear sight dovetail.



For LE users whose agencies authorize P365X and RMRcc, and also mandates backup sights for red dot equipped handguns, we offer backup sights made by Night Fision: Night Fision sights (be sure to select the SIG sights in the drop down menu.)  The tritium dot is partially obscured, the iron sights are very low and usable.









NOTE:

RMRcc sealing plate is required, a sealing plate comes with RMRcc (check underneath the foam on the bottom  the Pellican case.)



P365X holsters from Henry Holsters https://www.henryholsters.com/ and PHLSTER https://www.phlsterholsters.com/ can accommodate a P365X/XL with BIS, P365X.

Compatible holsters with BIS, P365X:

PHLster Skeleton, Enigma (both WML and non-WML, both RH and LH versions), and Pro

Henry Holsters Ember for P365X with TLR7



Torque value for plate to slide M3 0.5x12mm screws: 15 in lb.

Torque value for RMRcc sight to plate 5-40x3/8 screws: 15 to 18 in lb.



NOTE:

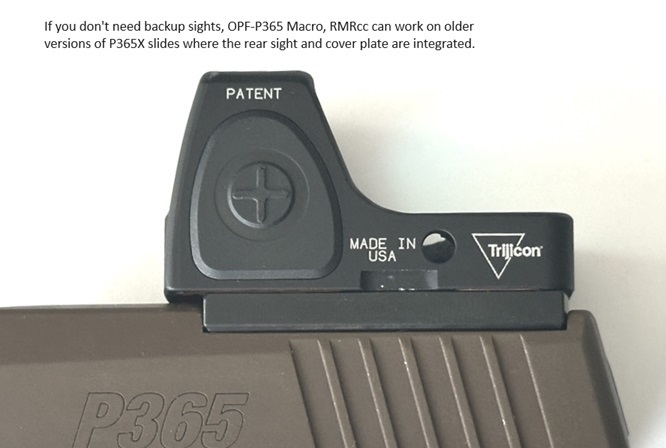

If you don't need backup sights, OPF-P365 Macro can work on older versions of P365X where the rear sight is attached to the cover plate, it does not provide a rear sight dovetail for a rear sight.
