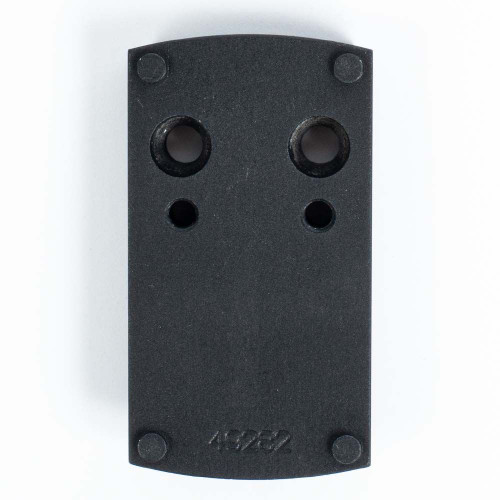

EGW Sig Sauer P320 Dovetail Red Dot Optic Mount for Vortex Viper & Venom

Material: 7075 Aluminum
Coating: Matte Black Hardcoat
Overall Length: 1.811"
Overall Width: .99"
Torque Specs: 15 in/lbs

Mounting Hardware:
(2) 6-32 Button Head Screws
(2) 6-32 Flat Head Screws
(1) 6-32 Set Screw

Red Dot Fitment:

Vortex Viper
Vortex Venom
Burris Fast Fire 1, 2, 3, 4
Docter
ADE RD3-001
ADE RD3-002
ADE RD3-009
UTG Reflex Micro Dot
Crimson Trace CTS-1200
Crimson Trace CTS-1300
Sightmark Mini Shot
Sightmark Core Shot

The mounting screws require a 5/64" wrench and the set screws (when applicable) require a 1/16" wrench.

*All ADE mounts require 6-32 x 3/8" screws.

Please note: We have found that some red dots commonly found on Amazon such as the UTG and ADE may not hold the same tolerances as the red dots that this mount was initially created to work with. These dots may not fit properly on the posts on the plate. We would recommend either sending the red dot back for an exchange to whichever seller you purchased it from, or open up the holes in the bottom of the red dot to accommodate the pins.

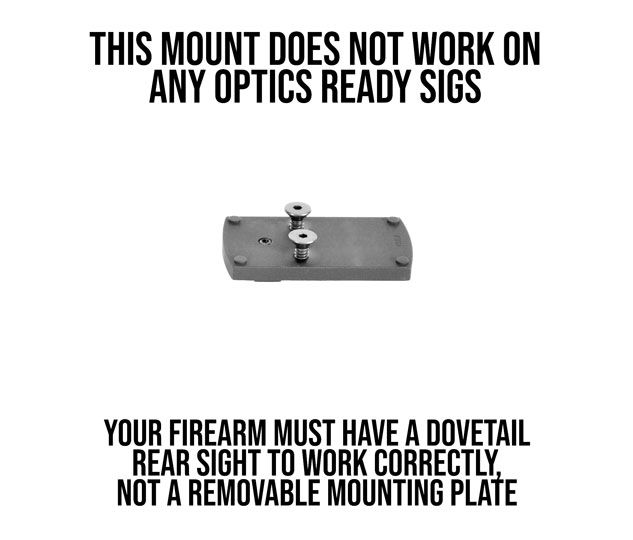

This mount does not work on any optics ready Sigs.

Our red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install.

Simply remove the rear sight on your gun and replace it with our mount in order to mount your Vortex Viper/Venom, Burris FastFire, or Docter red-dot sight. You can take our mount off and replace your rear sight at any time. Mounting hardware included.

Installation Instructions
- Remove the rear sight*
- Install the EGW Sight Mount in the dovetail
- Tighten set screw (if applicable)
- Place the red dot sight on the EGW Sight Mount
(placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.)
- Apply blue Loctite to the provided mounting screws
- Torque mounting screws to 15in/lbs

2 Button Head Cap Screws - Provided for Vortex Viper and Venom Sights
2 Flat Head Cap Screws - Provided for Burris FastFire and Docter Sights

The screws that are included with this mount require a 5/64'' allen wrench for installation.

Modification of your firearm may nullify the manufacturer's warranty.
This product should be installed and checked by a qualified gunsmith.
No liability is expressed or implied for damage or injury which may result from improper installation or use of this product.

Click here to see a video from Vortex on how to install our red dot base on a slide.

Warning: This product may be alloyed with trace amounts of lead and other elements which are known to the State of California to cause reproductive harm and cancer. To prevent exposure, do not alter the product by welding, grinding, etc. For more information, go to www.P65Warnings.ca.gov.
