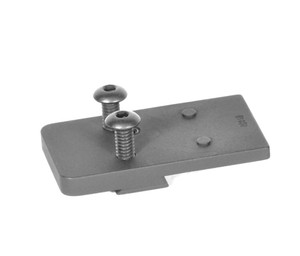

S&W M&P Trijicon RMR Red Dot Optic Sight Mount by EGW (49508)
Material: 7075 Aluminum
Coating: Matte Black Hardcoat
Overall Length: 1.780
Overall Width: 1.1"
Mounting Hardware: (2) 6-32 Flat Head Screws, (1) 6-32 X 3/16 Set Screw
Red Dot Fitment: Trijicon RMR, Holosun HS507C, HS407C, HS508C
The mounting screws require a 5/64" wrench and the set screws (when applicable) require a 1/16" wrench.
This mount will fit:
Smith & Wesson M&P Full Size
Smith & Wesson M&P 2.0 Full Size
Smith & Wesson M&P 22 Full Size
Smith & Wesson M&P Compact*
Smith & Wesson M&P 2.0 Compact*
Smith & Wesson SD9VE
Smith & Wesson SD40VE
This mount does not fit:
Smith & Wesson M&P Shield (Our mount is too wide to fit the Shield)
Smith & Wesson M&P Shield EZ .380
Smith & Wesson SW9VE
Smith & Wesson SW40VE
Smith & Wesson M&P C.O.R.E Series
*Will not fit the M&P .22 Compact.*
Smith and Wesson's rear sight dovetails are known to vary in dimensions. Our sights are made to the same tolerances. Some users may have trouble installing our plate on their slide due to the varying tolerances in your slides. Please keep this in mind when ordering. Our return policy does allow for returns of unused and undamaged parts. These mounts should be installed and checked by a qualified gunsmith. No liability is expressed or implied for damage or injury which may result from improper installation or use of this product.
Simply remove the rear sight on your gun and replace it with our mount in order to mount your Trijicon RMR red dot sight. No alterations are required. You can take our mount off and replace your rear sight at any time. Mounting hardware included.
Installation Instructions
- Remove the rear sight*
- Install the EGW Sight Mount in the dovetail
- Tighten set screw (if applicable)
- Place the red dot sight on the EGW Sight Mount
(placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.)
- Apply blue Loctite to the provided mounting screws
- Torque mounting screws to 15in/lbs
*Rear sight pusher tool highly recommended*
Click here to see a video from Vortex on how to install our red dot base on a slide.
