S&W M&P 2.0 Thumb Rest Takedown Lever by Align Tactical

No reviews yet Write a Review
Calculated at Checkout

S&W M&P 2.0 Thumb Rest Takedown Lever by Align Tactical

The Align Tactical® THUMB REST TAKEDOWN LEVER is compatible with Smith&Wesson® M&P M2.0® pistols, Metal and Polymer versions in 9/40/10mm/.45ACP (Not compatible with original M&P 1.0 versions). Hardened S7 tool steel part finished in Black Oxide. Approved for USPSA Production and Carry Optics. Thumb Rest Made in USA with lifetime warranty. Trigger Pin with built-in anti-rotation stop included.

*Holster selection requires clearance for extended ledge. Refer to Align Tactical's Compatible Holster Manufacturers for select models from Safariland, Werkz, and Raven Concealment Systems with dozens more in development from our holster partners.

Master Recoil

The Align Tactical® THUMB REST TAKEDOWN LEVER integrates an ergonomic ledge for the support hand's thumb to firmly lock down against, serving as a brake against muzzle flip to provide the fastest follow-up sight picture. Increased surface contact with the pistol reduces support hand slippage while providing an index point for a consistent high thumbs-forward grip. Swap from the flat takedown lever to offer maximum control and speed in Smith&Wesson® M&P M2.0® pistols for a competitive edge.


Back to top of page ↑

Secure Design

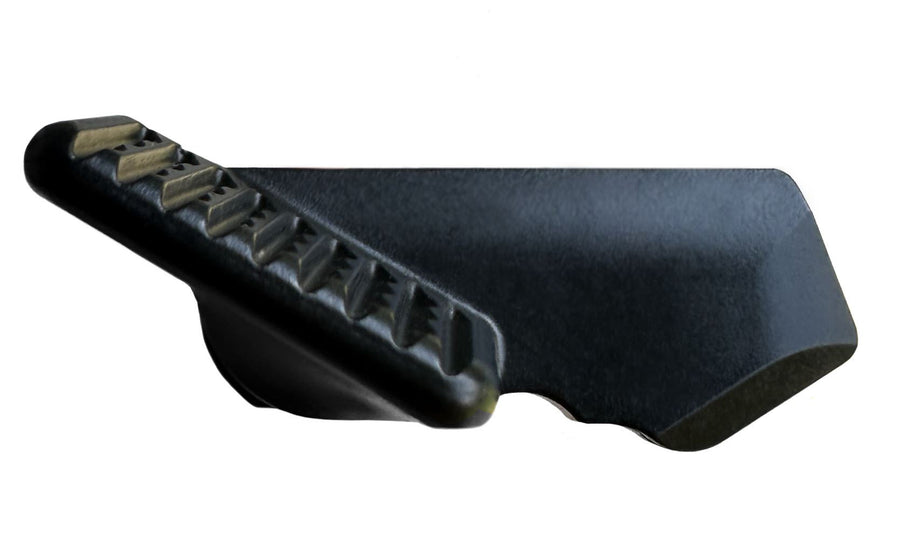

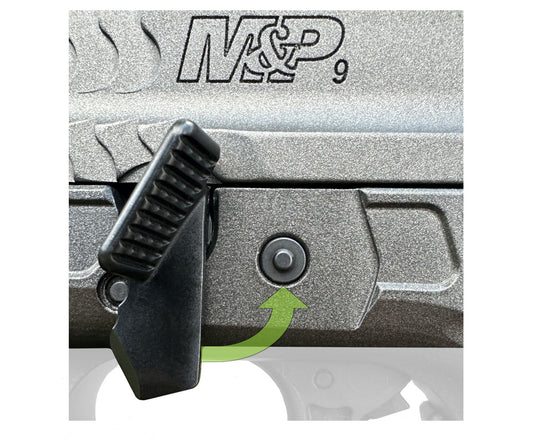

The thumb rest ledge extends 30 degrees forward of the center of rotation, directing applied pressure (counter clockwise) towards an included over-travel stop to rigidly remain locked in place. When used in the opposite direction (clockwise) for disassembly, rotation is easy with a simple pinch and turn of the ledge.

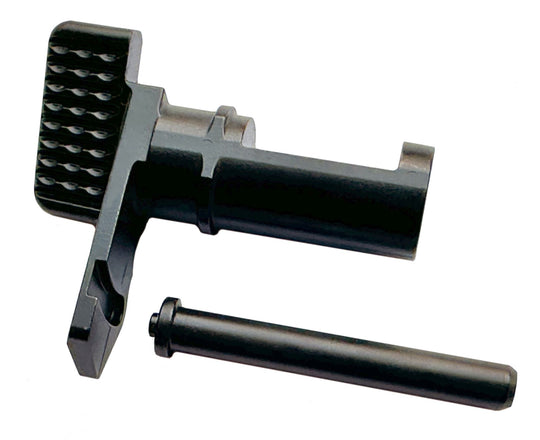

                            Enhanced Trigger Pin                                             Horizontal Position Stop
We've taken our takedown lever to the next level by including an enhanced              When rotated up to the horizontal position, our Thumb Rest Takedown Lever
trigger pin with anti-rotation stop, which is designed to engage a back-face              has the same security as our similar patented/patent-pending Thumb Rests.
channel bottom for added security.

Back to top of page ↑

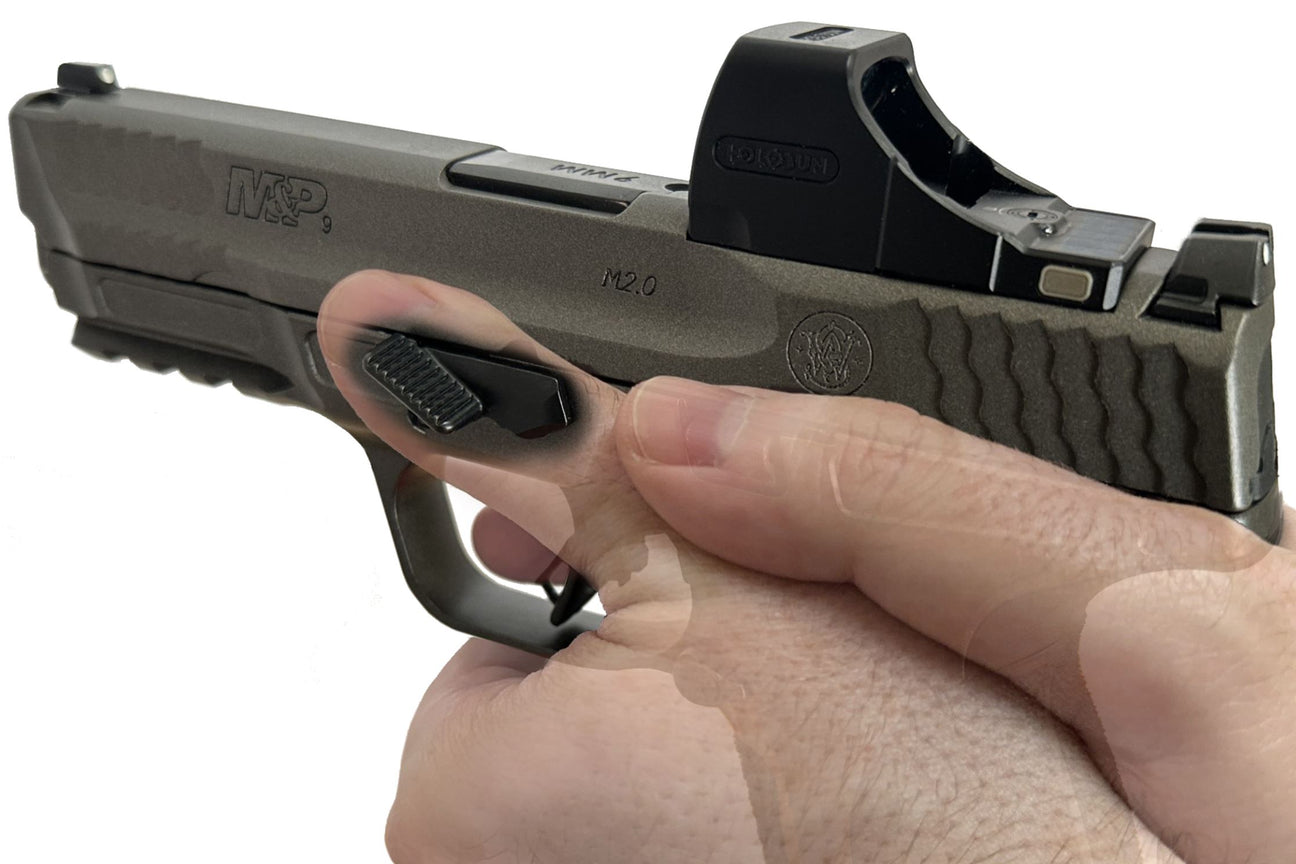

Establishing a two-handed grip creates a naturally angled cant of one’s support hand thumb. Incorporating a secondary receiving slope of 15 degrees allows for evenly distributed thumb pressure and serves as a guide for settling into proper contact position (with the thumb print pressed flat onto the rest).


Back to top of page ↑


Back to top of page ↑

USPSA Production Approved

Are you ready?” for clearing stages faster than ever with your M&P M2.0®? Upgrade to the ultimate performance components for USPSA production* class and above.

*Per Section 21.6 - Exchange of minor EXTERNAL components, our takedown lever received USPSA NROI validation under the classification and definition of approved “pins” being comprised of a cylindrical shaft that traverses through the pistol to hold things together, such as the slide assembly to the lower.

**IDPA International body validated for ESP and Carry Optics Divisions


Back to top of page ↑

Installation Video
